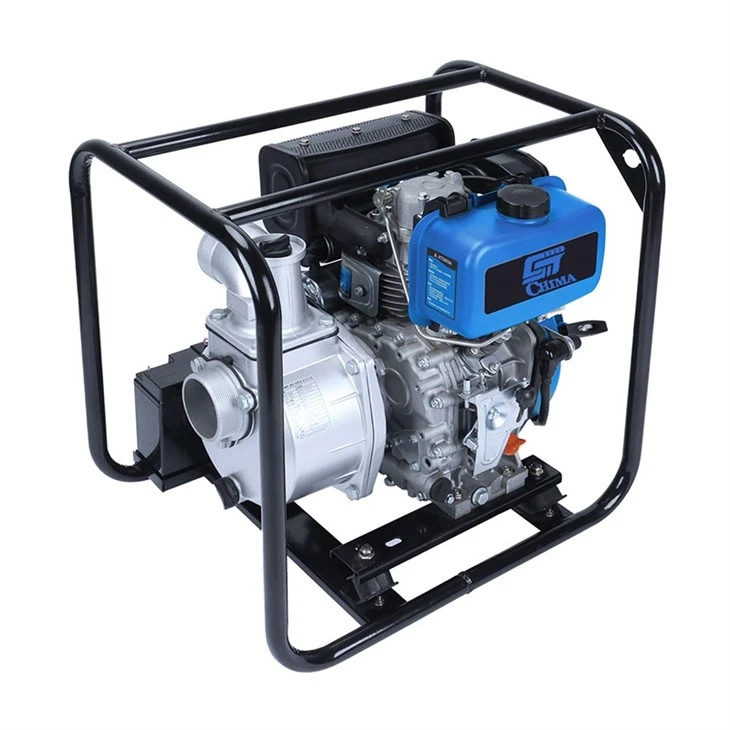

Portable 4-stroke Air-cooled Diesel Water Pumps 2inch 3inch 4inch170f High-lift Water Pumps
Introducing the Diesel Irrigation Water Pump: A Reliable Solution for Agricultural Water Supply
Our diesel irrigation water pump offers a simplified approach to agricultural water distribution. Powered by a dependable diesel engine, it efficiently irrigates fields, eliminating the need for electricity. Its straightforward operation and sturdy design ensure consistent water delivery for optimal crop growth.
Key Features
- Reliable 4-Stroke Diesel Engine: Boasts low fuel consumption and a high-quality screw shaft for reliable performance.
- Portable, Durable, and Compact: The 28mm size pump frame makes it easy to transport and store.
- Cast Iron Construction: The pump body and impeller, made of cast iron, excel under high temperatures and pressures.
- Imported Rubber Absorber: Reduces vibration and safeguards the engine for prolonged use.
- Durable Sealing System: Equipped with a special mechanical seal to enhance longevity.
- Experience the efficiency and durability of our Cast Iron Diesel Water Pump, designed to meet the demands of agricultural water supply with ease.
Application
Our 4 Stroke Diesel Engine Water Pump finds extensive utility across various water supply systems, both automatic and manual. It serves as a dependable solution for:
- Automatic and Manual Water Supply Systems: Whether for residential, commercial, or agricultural use, our water pump ensures consistent and reliable water distribution.
- Fire Water Supply: In emergency situations, such as firefighting operations, our pump provides a robust and efficient source of water to combat flames effectively.
- Special Requirement Occasions: Where specific water supply needs arise, our versatile pump meets the challenge with ease, adapting to diverse environments and demands.
Specifications
4 Inch Diesel Water Pump With Electric Manual Start Irrigation 170F Diesel Engine Trash Water Pump
|
Model |
Z50-32-170F (diesel) |
Z80-30-170F (diesel) |
Z100-20-170F (diesel) |
|
|
Type |
General-Purpose diesel water pump |
|||
|
lnlet diameter: |
2"(50mm) |
3"(80mm) |
4"(100mm) |
|
|
Outlet diameter: |
2"(50mm) |
3"(80mm) |
4"(100mm) |
|
|
Cont.head (m): |
32 |
30 |
20 |
|
|
Max suction head (m): |
7 |
7 |
7 |
|
|
Cont Capacity (m³/h): |
22 |
36 |
64 |
|
|
Self-Priming time (s/4m) |
70 |
120 |
180 |
|
|
Engine Model |
170F |
170F |
170F |
|
|
Cont output {kw/(hp)} |
2.8(3.8) |
2.8(3.8) |
2.8(3.8) |
|
|
Displacement: |
211ml |
211ml |
211ml |
|
|
Rated speed (rpm) |
3000 |
3000 |
3000 |
|
|
Net weight (kg) |
29 |
31 |
36 |
|
|
Dimension (L*W*H)(mm) |
505*430*450 |
535*430*450 |
620*450*530 |
|

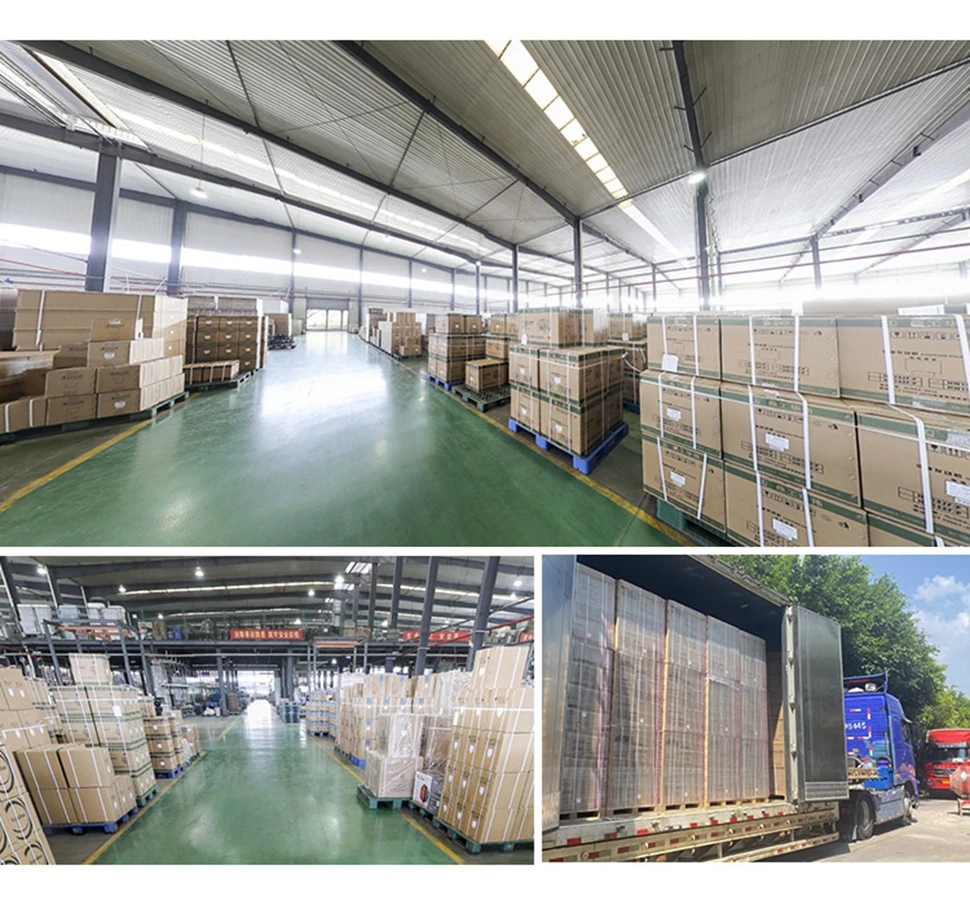

Packing and Delivery
Packing: carton packing (Option:wooden packing).
Production time: 3-10 days after confirming order, detail delivery date should be decided according to production season and order quantity.
