Agriculture Air Cooled Diesel Engine Driven Irrigation Water Pump

1.Equipped with a shock absorb shelf to reduce vibration, our diesel engine driven water pumps offer reliable performance.
2.With various choices ranging from 2 inches to 6 inches, including clear-water pumps, sewage pumps, and chemical pumps, they cater to diverse needs.
3.Featuring a high-volume fuel tank for long continuous run, these pumps ensure uninterrupted operation.

Send Inquiry

Description

Technical Parameters

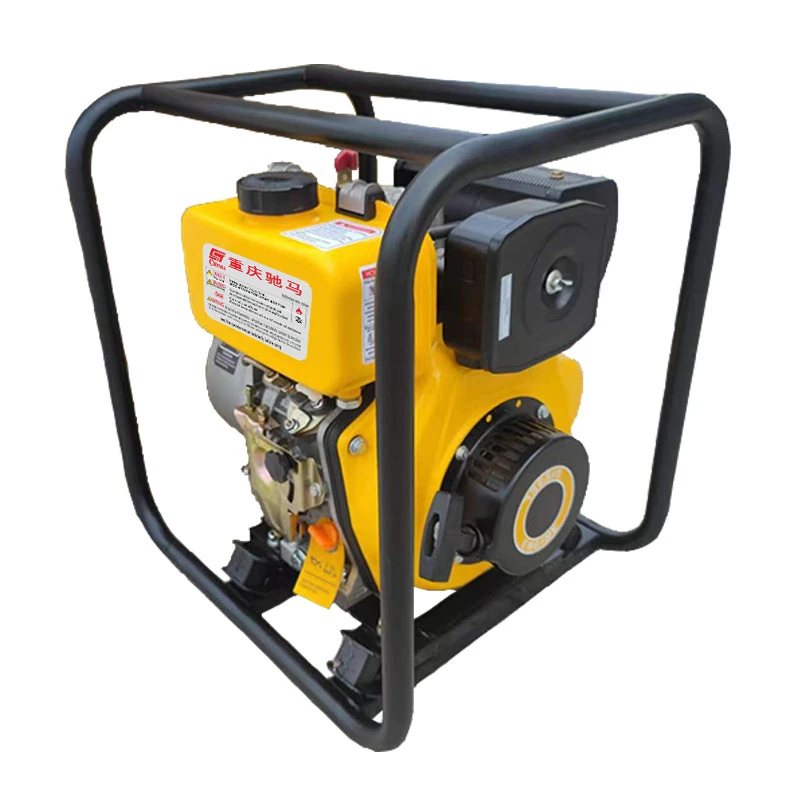

diesel engine driven water pump

Introduction

Equipped with a shock absorb shelf to reduce vibration, our diesel engine driven water pumps offer reliable performance.
With various choices ranging from 2 inches to 6 inches, including clear-water pumps, sewage pumps, and chemical pumps, they cater to diverse needs.
Featuring a high-volume fuel tank for long continuous run, these pumps ensure uninterrupted operation.
Suitable for agricultural irrigation, fire fighting, plumbing, drainage, and more, our agriculture diesel engine water pumps are designed to meet your demanding requirements.

Specifications

Air Cooled Diesel Water Pump This parameter table is for reference only
inlet and outlet	50(2in)	80(3in)	100(4in)	150(6in)
Suction range [m]	6	6	7	6
Lift [m]	36	26	30	21
Flow rate [m³/h]	28	62	93	150
Power Model	173F	178F	186FA	192F
Rated power [kw]	3.5	4	6.3	8.5
Rated speed [rpm]	3600	3600	3600	3600
*Cylinder borestroke[mm]**	73*59	78*62	86*72	92*75
Fuel capacity [L]	2.5	3.5	5.5	6
Oil capacity [L]	0.75	1.1	1.65	1.65
Start-up method	Manual/Electric	Manual/Electric	Manual/Electric	Manual/Electric
Net weight [kg]	≈40/50	≈50/60	≈85/95	≈105
Dimensions [mm]	500420510	580455540	650510570	11001050650

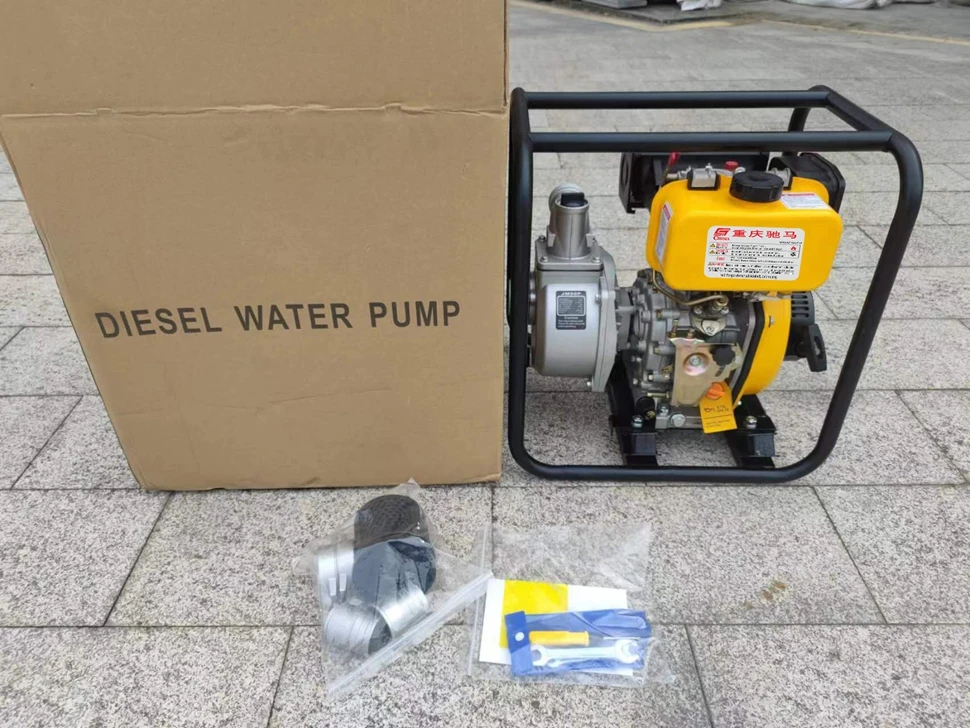

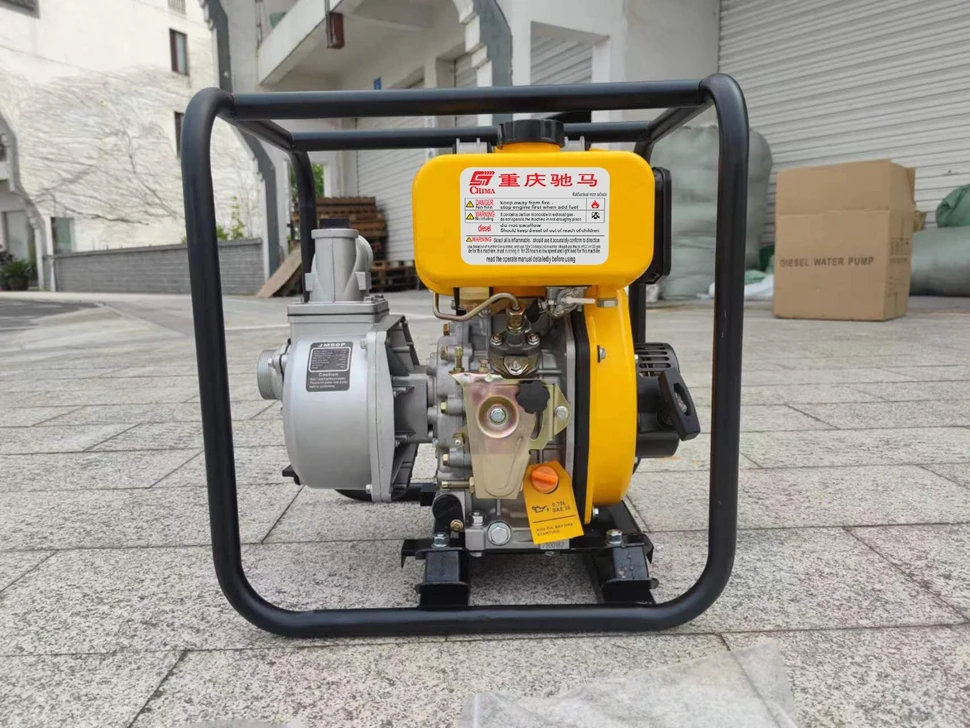

Diesel engine irrigation pump detailed display

FAQ

Q: Are you a factory or a trading company

A: We are a factory and trading company. We are one of the largest garden machinery manufacturers in China. We have been in this industry for more than 18 years.

Q: How does your factory do in terms of quality control?

A: Quality control is implemented at every workstation in production. Our products are 100% internally inspected before shipment.

Q: What's your payment method supported?

A: We accept T/T, L/C, Western Union, etc.

Q: How does your factory do regarding quality control?

A: Quality is very important and always be put at the first place.
We have our own test-room, and every product must be tested before leaving our factory.
