Diesel 120kg Agricultural Machine Cost Tiller

Product Introduction

Our premium diesel tiller weighing 120kg, designed to deliver efficient semi-automatic multi-functional agricultural tilling. Crafted for optimal performance, the agricultural machine tiller build and intuitive fingertip controls ensure smooth operation. Equipped with transport wheels and fold able handlebars, cost of power tiller offers convenient mobility and storage, catering to users of all ages and physical capabilities. With dual rear-mounted transport wheels, it effortlessly traverses various terrains. Plus, its generous 1.5-liter tank allows continuous operation for 1-2 hours on a full tank. We offer competitive pricing of the 120kg diesel tiller, providing peace of mind with your purchase.

Product Details

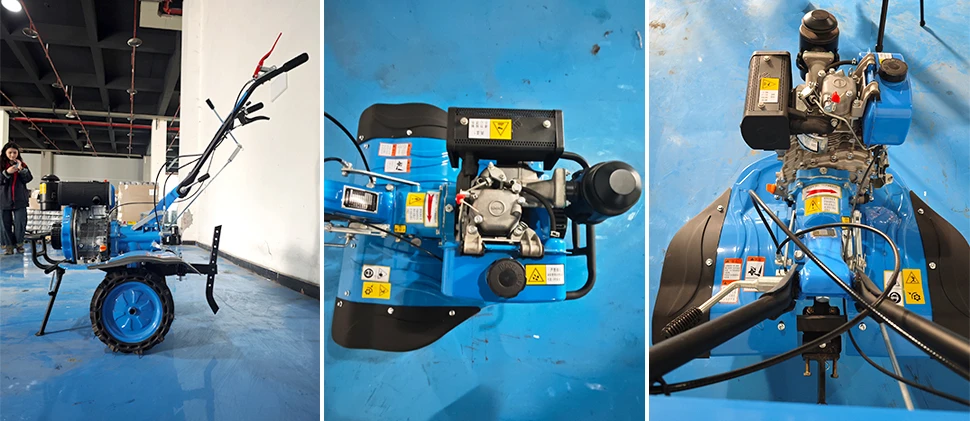

Factory 120kg diesel tiller

The power of the micro tiller is optional, and the color can be customized to pursue the ultimate cost-effectiveness.

Product Parameter (specification)

Project / Model of tiller		1WG4.1-105FC-1	1WG4.1-105FC-2
Auxiliary power		178F-4.1kW (5.5HP)	178F-4.1kW (5.5HP)
Power Type		Diesel	Diesel
Weight (With a rotary device)		＜120kg	＜122kg
Dimensions (L×W×H)		100cm×56cm×85cm	100cm×56cm×85cm
Fuel economy	Rotary	＜420g/kw.h	＜420g/kw.h
Productivity	Rotary	50-55㎡/h	50-55㎡/h
Tillage depth	Rotary	12-17cm	12-17cm
Tillage width	Rotary	100-105cm	100-105cm
Operating speed	The former farming	0.38-0.45km/h	0.38-0.45km/h
Operating speed	Retreat
Gearshift		2,0,1,-1	2,0,1,-1
Gearshift		Gear	Gear

Optional Accessories

Suitable for diesel agricultural machine tiller
Diameter 23 two-piece anti-winding knife	Diameter 23 deep plow	Diameter 23 Paddy wheel	Diameter 23 Extended paddy wheel	Diameter 23 Flood and drought compound knife

Diameter 32 Four sets of four dry land tillers	Diameter 32 Three-piece anti-winding knife	Diameter 32 two-piece anti-winding knife	Diameter 32 crawler version	Simple opener

Package

diesel tiller packing

Carton packaging and wooden box packaging

FAQ

Q: How do you start operating the 120kg diesel tiller?

A: Hello! Thank you for your inquiry. Begin by carefully observing the smoke emitted from the exhaust pipe and listening to the sound of the starter. Once you've confirmed that the micro-cultivator starter is functioning properly, select the appropriate gear, disengage the clutch, and then separate the clutch to start the micro-cultivator rotation for field operations. Thank you!

Q: What precautions should I take after purchasing the agricultural machine tiller?

A: Hello! Thank you for your question. After purchasing a new agricultural machine tiller, it's important to clean the engine and remove any residual oil from the gearbox. The residual oil typically used during factory testing contains impurities such as water, sand, and iron debris. Prolonged use of this oil can lead to equipment damage, including cylinder malfunction. Thank you.

Q: Is this one of your popular models? Can you provide pricing information?

A: Hello! Thank you for your inquiry. Our factory can produce the model requested by the customer and provide pricing details for the power tiller. Give a price not higher than 10% of the cost of power tiller. Please feel free to reach out for more information. Thank you!
